PV inverter Kstar 125kW PV inverter three phase solar inverter Grid tied
$2,500.00
The Kstar 125kW PV inverter Commercial & Utility On-Grid PV Inverter is a high-power grid-tied solar inverter designed for large industrial rooftops and utility-scale solar installations. Equipped with 8 MPPT trackers (200–1000V range), advanced PLC (Power Line Communication), and multi-interface smart connectivity (RS485, WiFi, Ethernet, Bluetooth App), it minimizes wiring costs and maximizes energy yield for sprawling PV arrays.

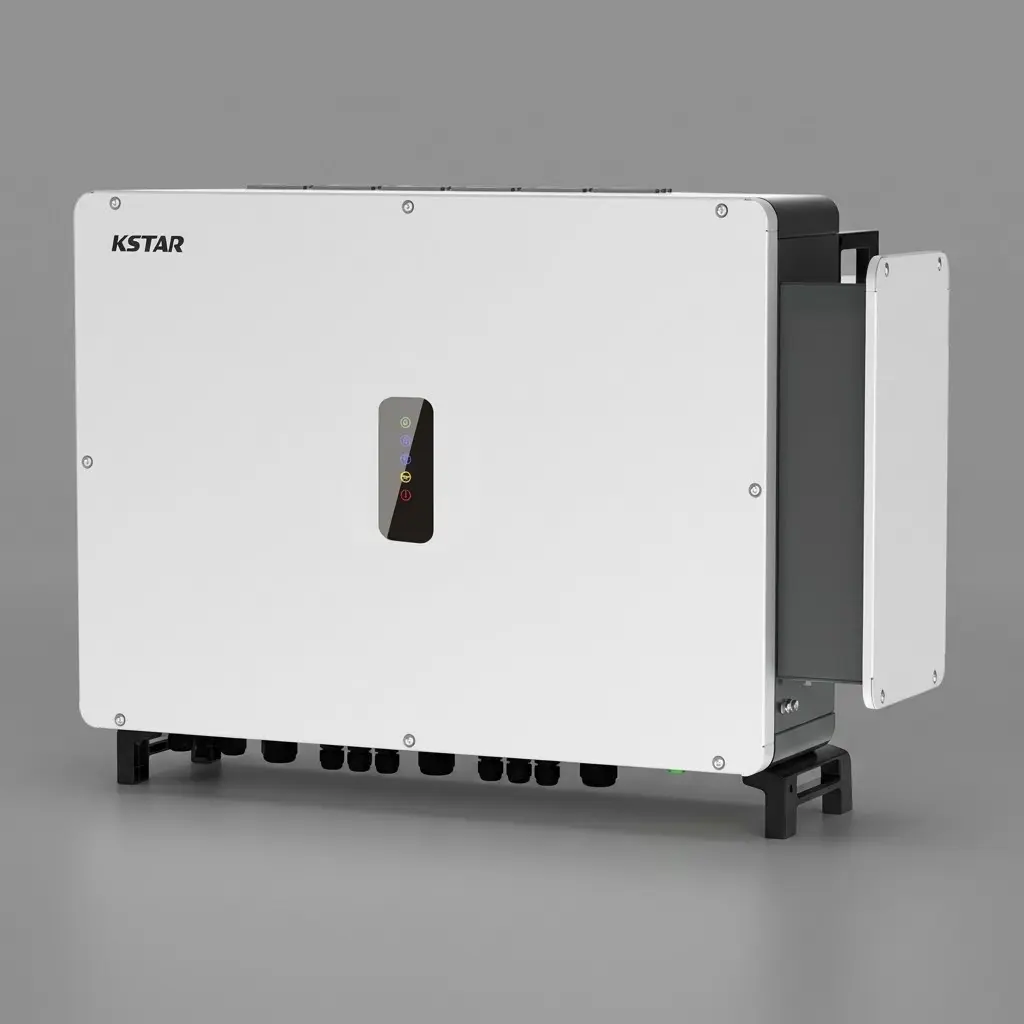

Kstar 125kW PV inverter
Designed for commercial, industrial, and utility-scale solar projects, the Kstar 125kW Three-Phase On-Grid PV Inverter delivers high power density and reliable grid-tied performance. By combining advanced 8-MPPT tracking with cost-saving PLC communication technology, this high-capacity inverter optimizes solar harvesting while significantly lowering system installation and balance-of-system (BOS) expenses.
Key Features & Operational Advantages:
-
125 kW Power Class: High-power output designed for high-capacity industrial plants and utility projects, reducing the total number of inverters required per solar farm.
-
8 Independent MPPT Trackers: Features 8 MPPTs with a wide 200–1000V operating voltage range, enabling precise power tracking across complex rooftop layouts, varying orientations, and shaded arrays.
-
PLC Communication (Power Line Communication): Transmits monitoring data directly over existing AC power lines—eliminating dedicated RS485 signal cabling. This drastically slashes wiring costs, shortens site commissioning, and simplifies long-term O&M.
-
Unified Smart Connectivity: Flexible integration via RS485, PLC, WiFi, and Ethernet interfaces, combined with clear LED indicators and Bluetooth App access for real-time fleet diagnostics and remote management.
-
Industrial Durability & Safety: Engineered to handle utility-scale grid dynamics, providing high system uptime and simplified maintenance across large PV power plants.
Kstar 125kW PV inverter distributorKstar 125kW solar inverter supplierKstar 125kW grid tied inverter datasheet Kstar 125kW solar inverter with PLC communication8 MPPT commercial grid tied inverterUtility scale 125kW PV inverter 200-1000V MPPT On grid solar inverter with power line communication Commercial 3 phase PV inverter 125kW High efficiency utility PV inverter Kstar
| G125KT7 Three-Phase String Inverter — Specification | ||||
| Parameter | Value | Unit | Remarks | |
| Input (DC) | ||||
| Recommended PV Array Power | 137.5kW | kW | 1.1 × rated power | |
| Max. DC Voltage | 1100 | V | ||
| MPPT Voltage Range | 200~1000 | V | Full-load range: 500~1000V | |
| Rated DC Voltage | 620 | V | ||
| Number of MPPTs | 8 | – | ||
| Max. Input Current per MPPT | 26 | A | ||
| Max. Short-Circuit Current per MPPT | 40 | A | ||
| Strings per MPPT | 2 | – | ||
| Output (AC) | ||||
| Rated AC Output Power | 125 | kW | ||
| Max. AC Apparent Power | 137.5 | kVA | ||
| Rated AC Voltage | 380/400/415 (3P+N+PE) | V | Line-to-line | |
| Rated AC Frequency | 50/60 | Hz | Auto-sensing | |
| Rated AC Current | 180.4 | A | @ 400V | |
| Max. Output Current | 199 | A | ||
| Power Factor | >0.99 (0.8 leading ~ 0.8 lagging) | – | Adjustable | |
| Total Harmonic Distortion (THDi) | <3% (of rated power) | % | IEC 61727 | |
| Efficiency | ||||
| Max. Efficiency | 98.7 | % | ||
| European Efficiency | 98.5 | % | Weighted efficiency | |
| Protection Devices | ||||
| DC Reverse Polarity Protection | Yes | – | ||
| DC Switch | Yes (integrated) | – | ||
| AC Overcurrent Protection | Yes | – | ||
| Surge Protection (SPD) | Type II (DC + AC) | – | ||
| Insulation Resistance Detection | Yes | – | ||
| Ground Fault Monitoring | Yes | – | ||
| Anti-islanding Protection | Yes | – | IEC 62116 | |
| Overcurrent / Overvoltage Protection | Yes | – | ||
| Temperature Protection | Yes | – | ||
| General Specifications | ||||
| Topology | Transformerless | – | ||
| Display | LCD | – | ||
| Communication | RS485 / PLC / WiFi / Ethernet | – | ||
| Protection Degree | IP66 | – | Dust & water resistant | |
| Operating Temperature | -25~+60 | °C | Derating above 45°C | |
| Relative Humidity | 0~100% (non-condensing) | % | ||
| Cooling | Smart forced-air (variable-speed fans) | – | ||
| Altitude | Up to 4000m (derating above 2000m) | m | ||
| Noise Emission | ≤80 | dB(A) | ||
| Dimensions (W×D×H) | 965×700×355 | mm | ||
| Weight | 85 | kg | ||
