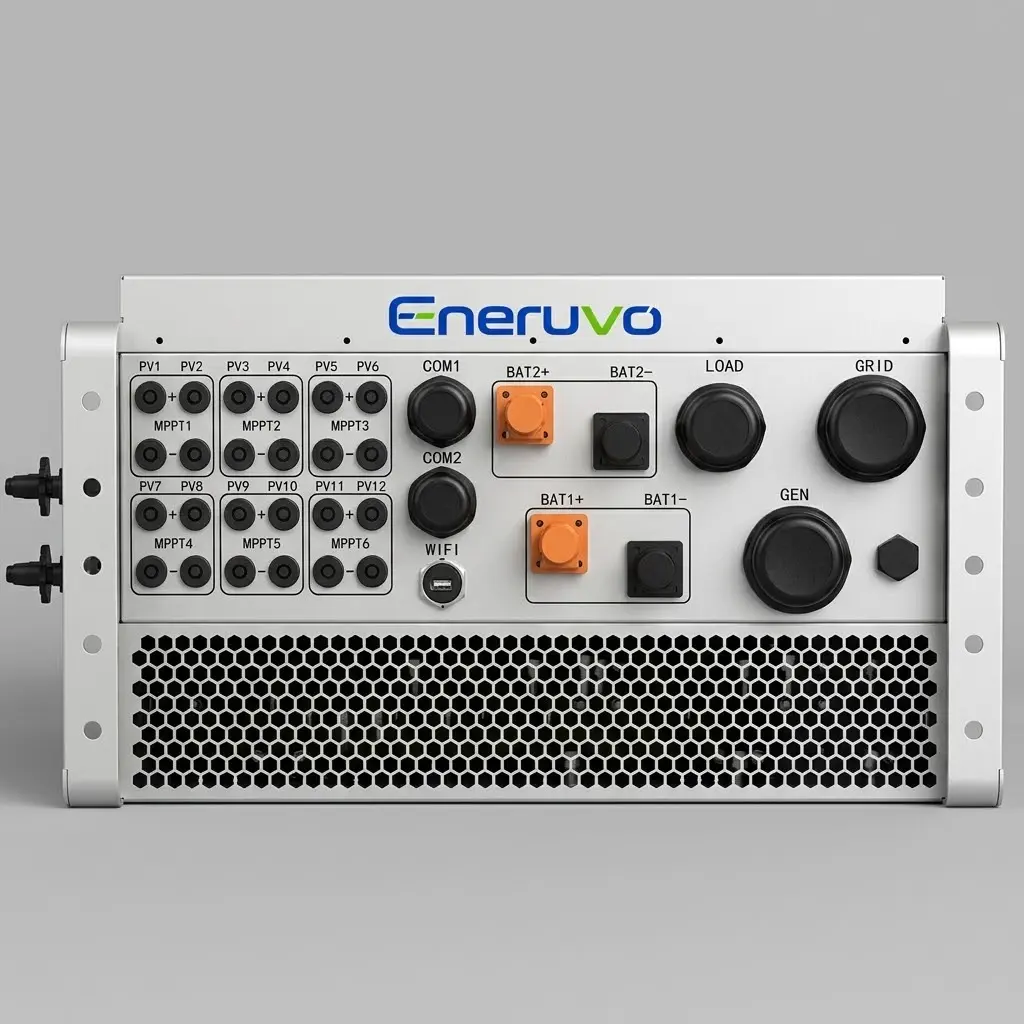

Commercial Hybrid Inverter 60kW wall mounted IP66
Commercial Hybrid Inverter 60kW wall mounted IP66 - Image 2
Home Hybrid Inverter

Commercial Hybrid Inverter 60kW wall mounted IP66

$2,800.00

The ZB40/49.9/50/60 Series is a high-performance Commercial & Industrial (C&I) Hybrid Inverter, offering flexible power solutions from 40kW to 60kW. Featuring DC-coupled PV-storage integration with support for up to 12 PV strings, diesel generator compatibility, and 100% unbalanced load capacity, it provides seamless power backup, peak shaving, and intelligent energy management for C&I microgrids and energy storage projects.

Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Commercial hybrid inverter 60kW wall mounted IP66

The ZB40/49.9/50/60 Hybrid Inverter is engineered for modern commercial and industrial energy storage applications. Designed with high power density and a compact footprint, this hybrid inverter integrates photovoltaic generation, battery storage, grid interaction, and diesel generator support into a flexible C&I power solution.

Model / Specification ZB40-IT-MX ZB49.9-IT-MX ZB50-IT-MX ZB60-IT-MX
Input DC (PV Side)
Recommended Max. PV Array Power 80 kW 99.8 kW 100 kW 120 kW
Max. Usable PV Input Power 80 kW 99.8 kW 100 kW 120 kW
Max. Input Voltage 1000 V
Rated Voltage 620 V
Start-up Voltage 180 V
MPPT Operating Voltage Range 150 V – 950 V
Max. Input Current 40 A × 4 / 40 A × 6
Max. Short Circuit Current 60 A × 4 / 60 A × 6
No. of MPPTs / Inputs per MPPT 4 MPPTs / 8 Strings ; 6 MPPTs / 12 Strings
Battery Specification
Battery Type Lithium-ion Battery
Operating Voltage Range 150 V – 950 V
Max. Charge / Discharge Current 160 A / 80 A × 2
Number of Battery Ports 1 / 2
Max. Charge / Discharge Current per Port 160 A / 80 A
Communication Interface CAN / RS485
Output AC (Back-up / EPS)
Rated Output Power 40 kW 49.9 kW 50 kW 60 kW
Max. Apparent Output Power 40K–50K: 1.5× rated power (10s), 1.6× rated power (0.2s)
60K: 1.4× rated power (10s), 1.6× rated power (0.2s)
Switching / Transfer Time < 10 ms
Rated Output Voltage 380 V / 400 V / 415 V, 3P+PE+N
Rated Grid Frequency 50 / 60 Hz
THDu (@ Linear Load) < 3%
Input AC (Grid Side)
Max. Input Current 182.3 A
Input AC (Generator)
Rated Input Voltage 380 V / 400 V / 415 V, 3P+PE+N
Rated Input Frequency 50 / 60 Hz
Output AC (Grid Side)
Rated Output Power 40 kW 49.9 kW 50 kW 60 kW
Max. Apparent Output Power 44 kVA 49.9 kVA 55 kVA 66 kVA
Rated Grid Voltage 380 V / 400 V / 415 V, 3P+PE+N
Rated Grid Frequency 50 / 60 Hz
Rated Grid Output Current 60.8A / 57.7A / 55.6A 75.8A / 72A / 69.4A 76A / 72.2A / 69.6A 91.2A / 86.6A / 83.5A
Power Factor > 0.99 (0.8 lagging – 0.8 leading)
THDi < 3% (Linear load < 1.5%)
Efficiency
Max. Efficiency 98.0%
Protections
Integrated Protections
Anti-islanding protectionDC reverse connection protectionInsulation detectionDC surge protectionAC surge protectionDC short circuit protectionAC overcurrent protectionAC short circuit protectionAC undervoltage/overvoltage protectionPV arc fault protection (AFCI)Residual / Leakage current protectionBattery overcurrent protectionOver-temperature protection
General Data
Dimensions (W × H × D) 4-channel MPPT model: 600 × 970 × 290 mm
6-channel MPPT model: 600 × 950 × 290 mm
Weight 4-channel MPPT model: 95 kg | 6-channel MPPT model: 98 kg
Topology Transformerless
Operating Temperature Range -40°C to +60°C (Derating above 45°C)
Relative Humidity Range 0% – 95% RH (Non-condensing)
Ingress Protection Rating IP66
Max. Operating Altitude 4000 m (Derating above 2000 m)
Cooling Method Intelligent Forced Air Cooling
Grid Connection Standards* EN 50549-1&2 / EN 50549-10, VDE-AR-N 4105, NTS 631, CEI 0-21, C10/11, NRS 097-2-1, TOR, G99, IEC 62116, IEC 61727, MEA, PEA, etc.
Safety & EMC Standards IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4
Features & Interfaces
PV Connection MC4 Quick Connection Plug
Battery Connection OT Terminal (M6)
AC Connection OT Terminal (Grid / Generator: M8, Back-up: M6)
Display 4.3″ LCD Display
Communication Interfaces Standard: WiFi + Bluetooth, CAN-BMS × 1, CAN-Parallel × 2, LAN, RS485-Meter, EMS-RS485 × 1, CAN-EMS × 1, DRM, DI × 5, DO × 6
Optional: 4G (Alternative to WiFi; WiFi is default)
